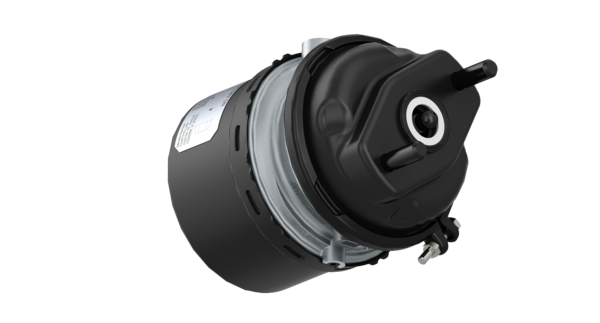

WABCO TRISTOP CYLINDER 24/24 – 9254812700
£250.00
Need compatibility help?
Tell us your vehicle make, model, year and engine, and our family team will help you compare the available options.
Ask on WhatsAppProduct details
**Please ensure to Contact us prior to purchase or include your registration number in the notes section during checkout. This will help us ensure that the parts are the correct fitment for your vehicle. Failure to provide this information may result in incorrect parts being sent, and any return postage costs will be the responsibility of the buyer**
Contact us via
sales@cplmotorparts.co.uk
Or use our Live Chat
Full product description
- BrandWABCO
- Part typePremium original quality
- Bolt lengths43.0 mm
- Bolt threadsM16 x 1.5
- Calculated Volume (dm³)12.9074
- Distance between bolts120.6 mm
- Max. operating pressure10.2/8.5 bar
- Opposite925 481 271 0
- Output force m11950 N
- Port thread 11M22 x 1.5 JED – 388
- Port thread 12M22 x 1.5 JED – 388
- Port threadsM16 x 1.5
- Product categoryDevice
- Push-rod length15 mm
- Push-rod threadBall R8
- Release pressure5.1 bar
- Return-spring force220 N
- Stroke57/57 mm
- Technical specificationOE specification
- Temperature range-40°C to +80°C
- Total length253.0 mm
- Type24/24
- Type of operationDisc
- Size (mm x mm x mm)315 x 197 x 208
- UPC193133354918
- Weight (kg)8.238
- Weight (lb)18.162
Delivery & returns
Free standard UK delivery is available on orders over £45. Unused and unfitted items may be returned within 30 days in their original packaging, subject to the returns policy.
